Precision Motor Encoder Disc – Tight Tolerance | Durable Metal Material | Accurate Position Detection
  • NAME
  • NAME

Precision Motor Encoder Disc – Tight Tolerance | Durable Metal Material | Accurate Position Detection

MOQ: 1 piece
Preis: negotiable
Standardverpackung: PVC bag, wooden case,carton
Lieferfrist: 5-20days
Zahlungs-Methode: TT,LC
Lieferkapazität: 1000000
Ausführliche Information
Beschreibung des Produkts
Ausführliche Information
Place of Origin
XIAMEN.CHINA
Markenname
METS
Typ:
Laminierte Kerne, Stator, nicht orientierter Siliziumstahl, Stahlunternehmen, Stator und Rotor
Material:
Siliziumstahl, kaltgewalzter nichtorientierter Siliziumstahl, 50WW400, kaltgewalztes Blech, 0,2 mm –
Anwendung:
Gleichstrommotoren Wechselstrommotoren, verschiedene Leistungstransformatoren und Vorschaltgeräte, B
Größe:
Kundenanforderungen, basierend auf den Kundenanforderungen, Anpassung, Zeichnung
Verpackung:
Wooden.box.carton.as Kundenanforderung, Papierkartons, PP + Karton mit Rostschutzverfahren, Holzpale
Oberflächenbehandlung:
Beschichtet, entsprechend Ihrer Anforderung
Herstellungsart:
Stanzform, Zeichnung des Kunden, entsprechend der Zeichnung oder dem Muster des Kunden.
Verwendung:
Bürstenloser Gleichstrommotor, Ersatzteile, Rotor und Stator
Minimum Order Quantity:
1 piece
Preis:
negotiable
Packaging Details:
PVC bag, wooden case,carton
Delivery Time:
5-20days
Payment Terms:
TT,LC
Supply Ability:
1000000
Hervorheben:

precision motor encoder disc

,

durable metal encoder disc

,

accurate position detection encoder

Beschreibung des Produkts

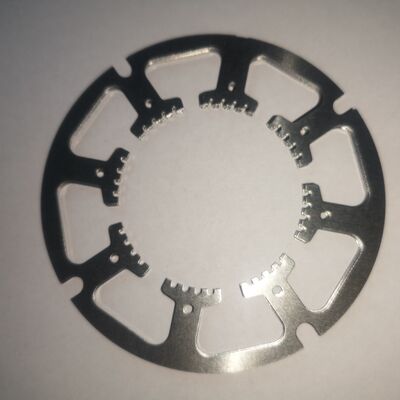

Precision Motor Encoder Disc
A motor encoder disc is a critical component used in rotary encoders to detect and measure the position, speed, and direction of motor rotation. This essential motion control system component provides accurate feedback signals that enable electronic controllers to precisely monitor and adjust motor performance.
Our precision motor encoder discs are manufactured using high-quality metal materials and advanced precision stamping or etching processes. The discs feature carefully designed patterns with extremely tight tolerances to ensure accurate signal generation and reliable performance in demanding applications.
At Xiamen METS Industry & Trade Co., Ltd, we specialize in producing high-precision metal components, including encoder discs for various motor systems. With advanced tooling technology and strict quality control procedures, we deliver encoder discs with consistent dimensions, clean edges, and excellent durability.
The encoder disc mounts directly on the motor shaft and rotates synchronously with the motor. As the disc spins, optical or magnetic sensors read the encoded patterns and convert them into electrical signals, which control systems interpret to determine exact rotational position and speed.
Key Performance Benefits
  • High resolution and accurate position detection
  • Excellent dimensional stability with tight tolerance control
  • Smooth surface finish with minimal burrs
  • Long service life under continuous operation
We offer custom motor encoder discs according to customer drawings, technical specifications, or application requirements. Our engineering team provides design optimization, material selection, and production solutions to ensure optimal performance for your motion control systems.
These encoder discs are widely used in servo motors, robotics, CNC machines, industrial automation systems, and precision control equipment where accurate motion feedback is essential.
Precision Motor Encoder Disc – Tight Tolerance | Durable Metal Material | Accurate Position Detection 0
Product Features
  • High Precision Manufacturing - Advanced stamping or etching technology ensures accurate encoder patterns
  • Tight Tolerance Control - Strict dimensional control enables stable signal detection and reliable operation
  • Durable Metal Materials - High-quality stainless steel or alloy materials provide excellent durability and wear resistance
  • Accurate Position Detection - Optimized encoder patterns ensure high-resolution motion feedback
  • Low Burr and Smooth Surface - Precision tooling minimizes burrs and improves sensor reading accuracy
  • Custom Design Capability - Encoder discs manufactured according to specific design and application requirements
Technical Specifications
ParameterSpecification
Product NameMotor Encoder Disc
MaterialStainless Steel / Metal Alloy
Manufacturing ProcessPrecision Stamping / Chemical Etching
Thickness0.05 mm - 0.5 mm
Tolerance±0.01 mm
Surface ConditionSmooth Surface, Low Burr
Pattern TypeCustom Encoder Pattern
Outer DiameterCustomizable
ApplicationServo motors, motion control systems
CustomizationAvailable according to drawings
Applications
Motor encoder discs are widely used in motion control systems that require accurate rotational feedback and precise positioning.
Servo Motors
Encoder discs provide accurate feedback signals for servo motor systems used in robotics, industrial machinery, and automation equipment.
Robotics and Automation Systems
Robotic arms and automated equipment rely on encoder discs to track position and movement precisely.
CNC Machines
In CNC machining systems, encoder discs help monitor motor rotation and ensure precise movement of machine tools.
Industrial Automation Equipment
Used in automated production lines, conveyor systems, and precision control machinery.
Precision Motion Control Devices
Applied in devices requiring high-resolution rotational measurement and accurate control performance.
The high precision and stability of encoder discs are essential for maintaining reliable motion control and improving the performance of modern automated systems.
Customization Services
We offer comprehensive customization services for motor encoder discs to meet different design and performance requirements.
Customization Options
  • Custom outer diameter and inner hole size
  • Encoder pattern design and resolution
  • Material selection for different environments
  • Thickness adjustment based on application needs
  • Surface treatments to improve durability
Our engineering team assists customers in optimizing encoder disc designs to ensure accurate signal reading and long-term operational reliability.
Support and Services
We provide professional technical support and reliable manufacturing services for customers worldwide.
Our Services Include
  • Product design consultation
  • Encoder disc pattern development support
  • Precision tooling and manufacturing
  • Prototype sample production
  • Mass production with strict quality control
  • OEM and ODM manufacturing services
We work closely with customers to ensure that each encoder disc meets performance requirements and integrates smoothly into their motion control systems.
Packing and Shipping
To protect precision components during transportation, our encoder discs are carefully packaged using multiple protective methods.
Standard Packaging Methods
  • Protective film or anti-scratch packaging
  • Individual plastic trays or foam protection
  • Strong export cartons
  • Pallet packaging for bulk orders
Shipping options include sea freight, air freight, and international express services depending on order quantity and delivery schedule.
Frequently Asked Questions
What materials are commonly used for motor encoder discs?
Motor encoder discs are typically made from stainless steel or other durable metal materials that provide high precision and stability.
Can encoder discs be customized according to our design?
Yes. We can manufacture encoder discs based on customer drawings, specifications, or custom encoder pattern designs.
What thickness options are available?
The typical thickness range is 0.05 mm to 0.5 mm, depending on the application and encoder design.
Do you support prototype samples before mass production?
Yes. Prototype samples can be produced for testing and verification before large-scale production.
What industries commonly use encoder discs?
Encoder discs are widely used in servo motors, robotics, CNC machines, industrial automation equipment, and motion control systems.
